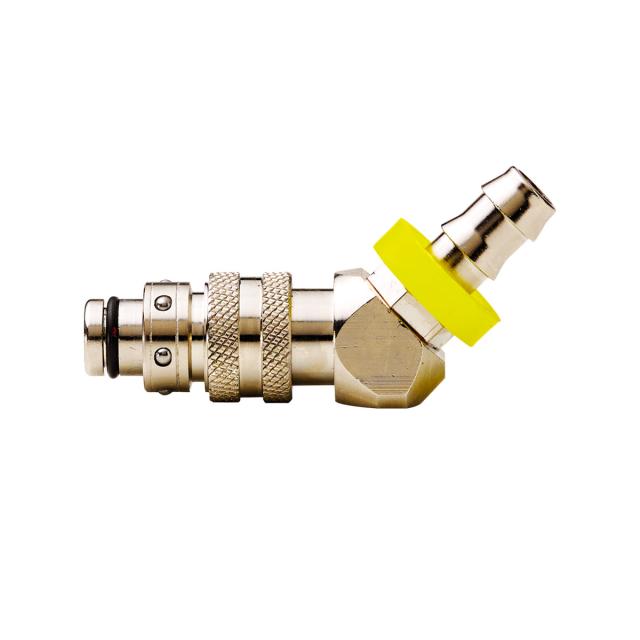

Coupling, 45° Push Lock Hose Tail

Push Lock Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. Can be used without using Hose clamp in connection with Mouldpro Push Lock Hose

Working Pressure: 15 bar, maximum static working pressure with safety factor of 4 to 1

Working Temperature: Water -15°C up to +140°C, Oil -15°C up to +180°C

Note: Without Hose Clamp Max Temperature 90°C
