Product number:
1601

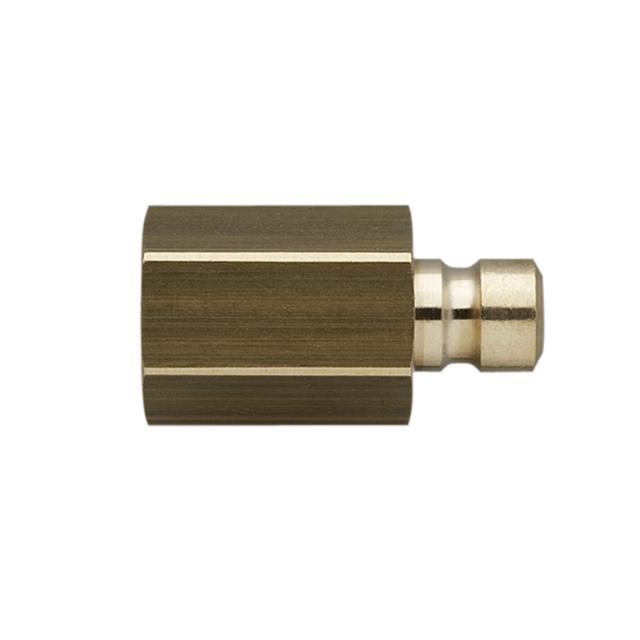

Connector Nipple, Female
- Mouldpro
From £0.84Available in stock
Files
| Name | Download | File type |
|---|---|---|
| Datasheet-COUPLERS-International-Series.pdf | 543 KB |
Images
3D Viewer
Specification
Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. 15 bar, maximum static working pressure with safety factor of 4 to 1
WorkingTemperature
Standard Couplers: Water -15°C up to +140°C, Oil -15°C up to +180°C
HT-Series: Water -15°C up to +180°C, Oil -15°C up to +180°C
