Product number:
1433

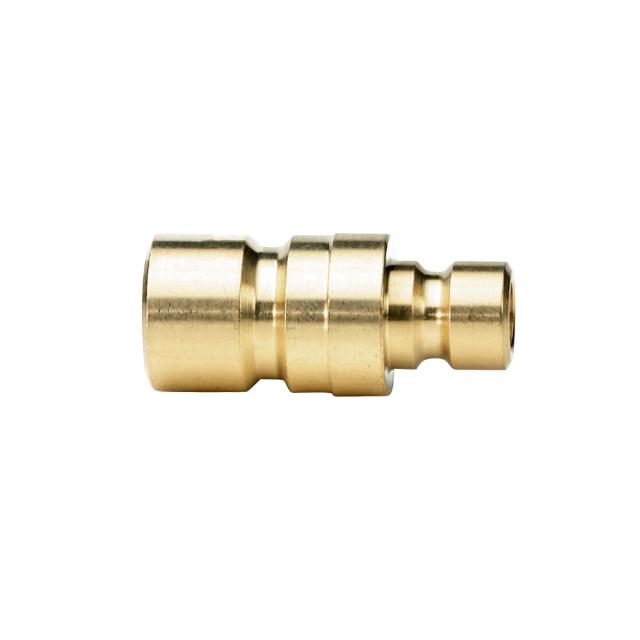

Double Nipple
- Mouldpro
From £2.79Available in stock
Files
| Name | Download | File type |
|---|---|---|
| Datasheet-COUPLERS-International-Series.pdf | 543 KB |
Images
3D Viewer
Specification
Technical description
Coupling series specially developed for connectin coolnat lines on injection moulds.
Fully interchangeable with other brands with the same plug profiles.
All dimensions and tolerances according to original specs.
Material
Coupling
| Back Body | Brass |
| Valve Body | Brass |
| Sleeve | Brass (without Valve) |
Sleeve Brass, Nickel Plated (with Valve)
Valve Brass
| Locking Balls AISI 420 |
Spring AISI 301
Seal FKM
Plug
Plug Profile Brass
Back Body Brass
Valve Brass
Spring AISI 301
Seal FKM
Working Pressure
15 bar, maximum static working pressure with safety factor of 4 to 1.
Working temerature
Water -15°C up to +140°C
Oil -15°C up to +180°C
