Product number:
1727

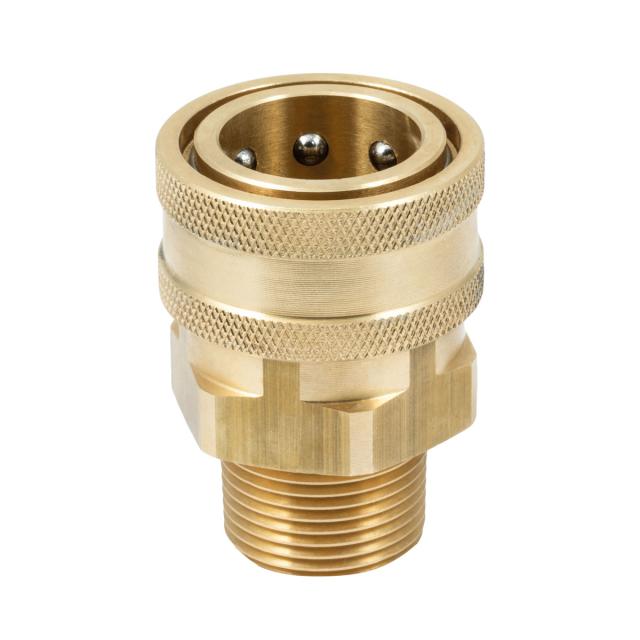

Male Threaded Coupling
- Mouldpro
From £20.61Available in stock
Files
| Name | Download | File type |
|---|---|---|
| Datasheet-COUPLERS-Large-Flow-Coulpings.pdf | 217 KB |
Images
3D Viewer
Specification
Coupling series especially developed for connecting feed lines on Manifolds.
Temperature control units or chiller cooling lines.
The Couplings offer maximum flow capacity.
Material
Coupling
Back Body | Brass |
| Valve Body | Brass |
| Sleeve | Brass |
| Locking Balls | AISI 420 |
| Spring | AISI 301 |
| Seal | FKM |
Plug
Brass
Working Pressure
15 bar, maximum static working pressure with safety factor of 4 to 1.
Working Temperature
Water -15°C up to +140°C
Oil -15°C up to +180°C
