Product number:
1725

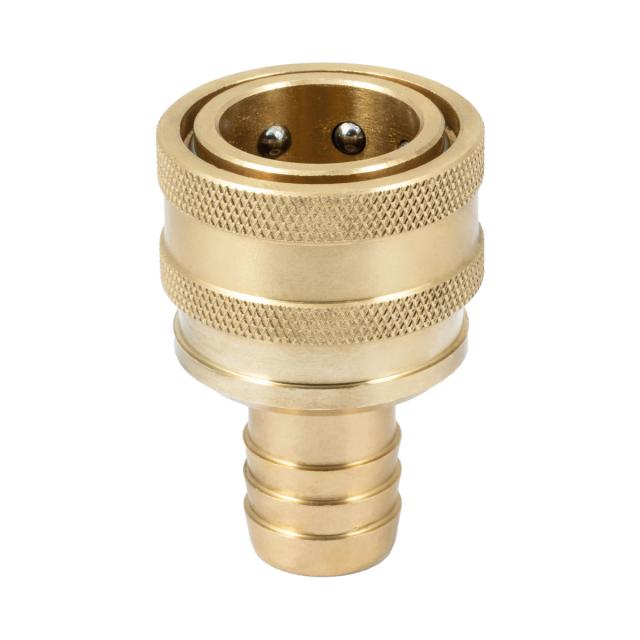

Straight Coupling
- Mouldpro
From £20.61
Available in stock
Files
| Name | Download | File type |
|---|---|---|
| Datasheet-COUPLERS-Large-Flow-Coulpings.pdf | 217 KB |
Specification
Coupling series especially developed for connecting feed lines on Manifolds. Temperature control units or chiller cooling lines.
These Couplings offer maximum flow capacity.
Material
Coupling
|
Back Body |
Brass |
| Valve Body | Brass |
| Sleeve | Brass |
| Locking Balls |
AISI 420 |
| Spring | AISI 301 |
| Seal | FKM |
Plug
Brass
Working Pressure
15 bar, maximum static working pressure with safety factor of 4 to 1.
Working Temperature
Water -15°C up to +140°C
Oil -15°C up to +180°C
Images
3D Viewer
