Product number:
UK-MST8000-1

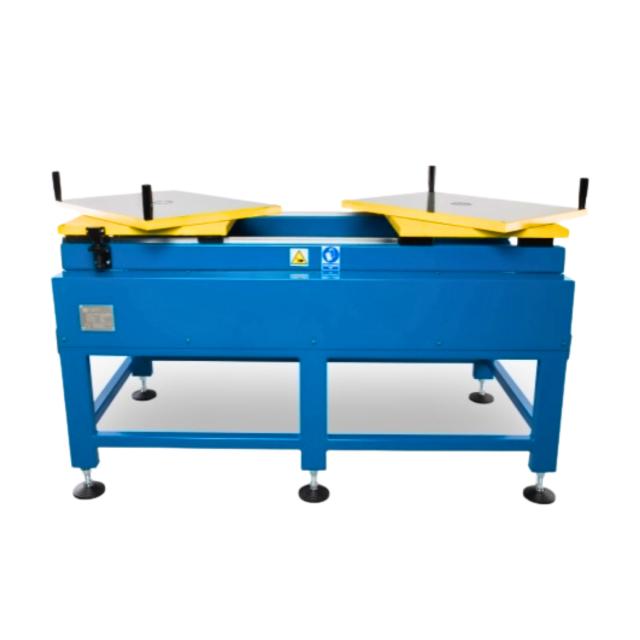

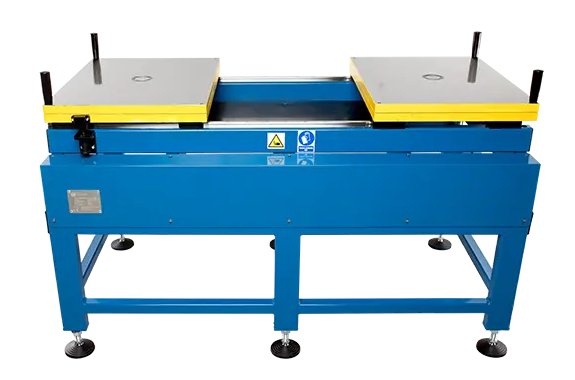

Mould Splitting Table
From £4,890.42Available in stock
Files
Images
3D Viewer
Specification
Mould Splitting Tables provide an easy way to split and rotate tools to provide an ease of access to all sides of the tool to allow the highest quality of workmanship and maintenance to occur

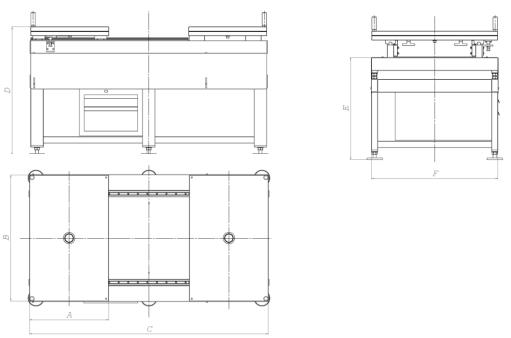

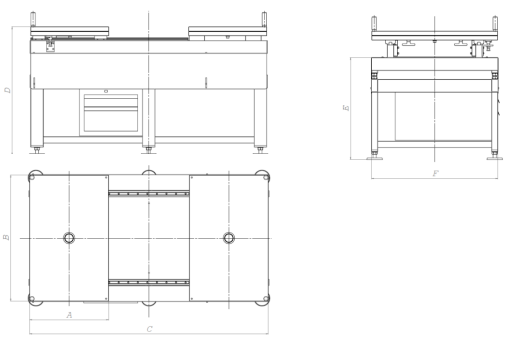

Overall table dimensions:
MST1500-1 1200mm L x 500mm W x 800mm H (2x 496mm x 346mm platforms)
MST3000-1 1500mm L x 800mm W x 800mm H (2x 646mm x 496mm platforms)
MST3000-2 1500mm L x 800mm W x 800mm H (2x 796mm x 496mm platforms)
MST8000-1 2000mm L x 800mm W x 650mm H (2x 996mm x 596mm platforms)
Fitted with adjusting, leveling feet (150mm bolts for 100mm adjustment)
Mould Splitting Tables come with one fixed platform and one sliding platform (along the Y-axis) both of which fully rotate and lock at every 90 degree interval. Platforms are rotated and separated using the handles on each platform
Other available options include:
- Wheels
- Brackets for mould mounting
- Drawer Module (75kg capacity)
- M16 threaded holes on platforms
- 90° Magnetic bracket
- Finished in RAL colour of your choice
Other customisations and sizes available on request, please contact us to get a bespoke quotation
Prices are inclusive of delivery to a UK address only
